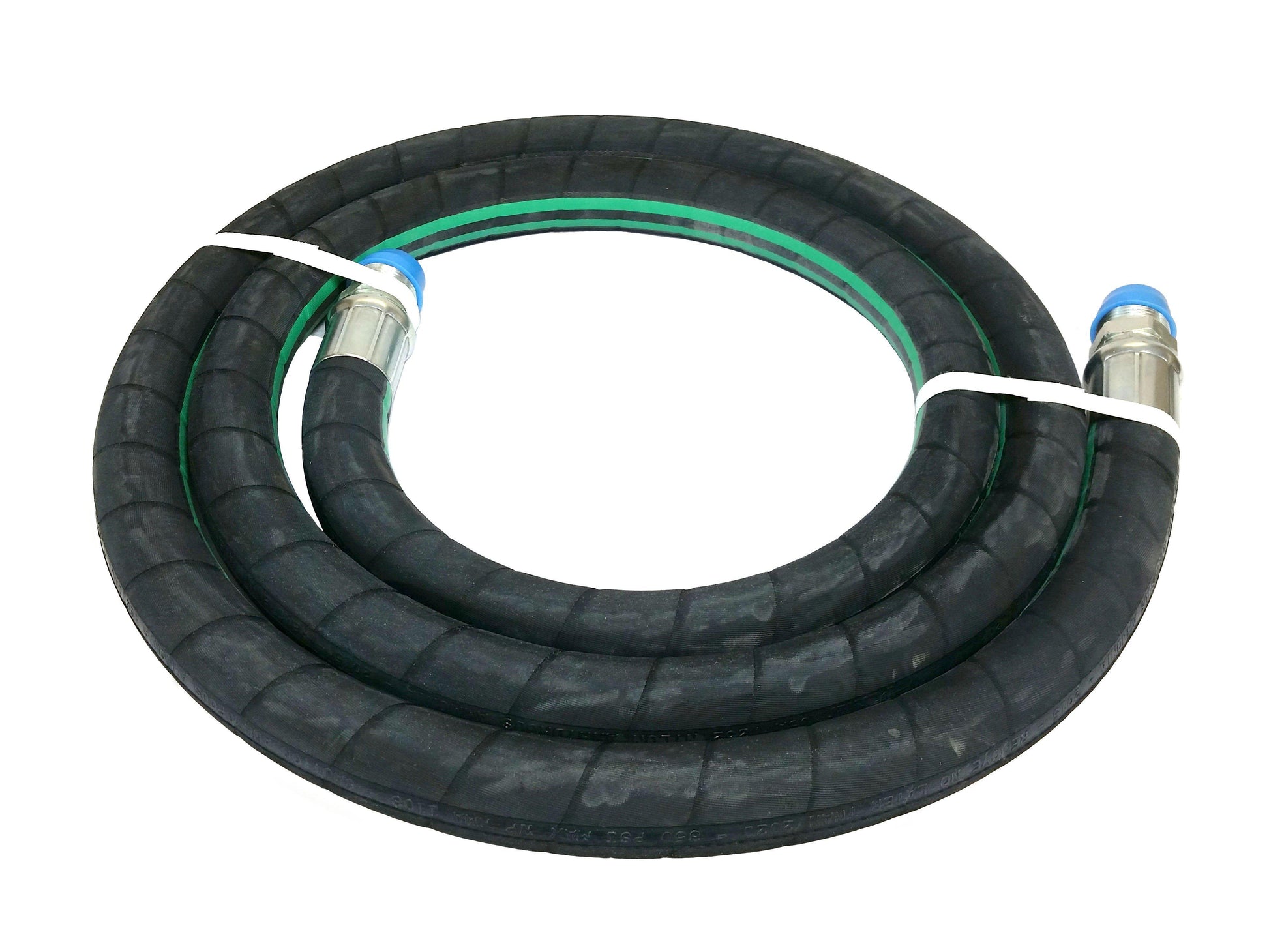

1" X 10' NH3 Nylon Braid Pre-coupled Hose Assembly - Parker 7262 SeriesGF100-100
Nh3 Hose Assembly, Nylon Braid, Pre-coupled 1" X 10' Parker 7262 Hose Assembly
Parker's Series 7262 Anhydrous Ammonia Hose provides superior service in agricultural applications. The braided textile reinforcement provides corrosion and kink resistance for operator safety. The cover features dual green stripes for easy identification, and resists abrasion, chemicals and weathering for maximum durability and performance.
Features - Specifications:
Hose Size: 1" ID
Connector Size - Material: 1" - Steel
Assembly Length: 10'
Tube: Black EPDM for chemical resistance to 180°F.
Reinforcement: Multiple (2) textile braids for corrosion and kink resistance, strength and durability.
Cover: Black EPDM for abrasion and chemical resistance - Dual green longitudinal stripes for easy identification.
- Anhydrous ammonia - Bulk depots and storage facilities
- In-plant transfer - Farm fertilizing equipment and systems
Industry Standards: • ARPM IP-14
Temperature Range: -400 F to + 1800 F
Safety Factor: 5:1
Minimum Bend Radius: 10 in.
Max Working Pressure: 350 PSIMarkets:
- General Industrial
- Tube: Black EPDM for chemical resistance to 180°F.
- Reinforcement: Multiple textile braids for corrosion and kink resistance, strength and durability.
- Cover: Black EPDM for abrasion and chemical resistance.
- Cover: Dual green longitudinal stripes for easy identification.
- Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.
Media: Anhydrous ammonia
Usage: Bulk depots and storage facilities
- In-plant transfer
- Farm fertilizing equipment and systems
- Commercial and Industrial refrigeration equipment supply lines
For Anhydrous Ammonia use ONLY. Do not use in Liquid Petroleum Gas (LPG)/Propane or Natural Gas applications. Use only with couplings qualified by Parker. Do not use with couplings containing hidden o-rings such as male swivel couplings. For non-agricultural or refrigeration applications, contact Parker.
Contact with Anhydrous Ammonia (NH3) will burn skin and is especially damaging to the eyes and lungs. This is true for its liquid and gaseous (vapor) state. Many accidents involving NH3 have occurred by using the wrong hose. NH3 hose must be specially compounded and constructed to handle the media. NEVER use a hose that is not designed for NH3 because it may fail very quickly and cause bodily injury or death. It is especially important to ensure that only Anhydrous Ammonia hose is recommended and used for this service. Refer to ARPM Publications IP-14 “Anhydrous Ammonia Hose, Specifications” and IP-11-2 “Anhydrous Ammonia Hose, Manual for Maintenance, Testing and Inspection.”
Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to the NAHAD Industrial Hose Assembly Guidelines.
