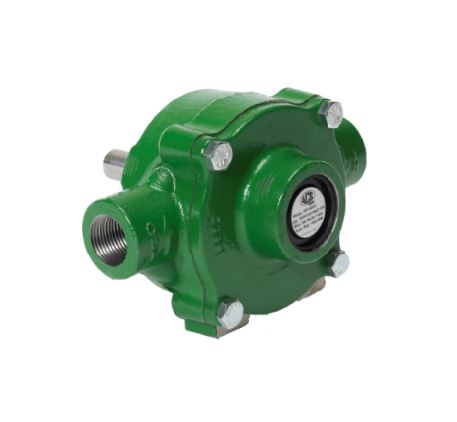

ACE PUMP 8 ROLLER PUMP

Ace Roller Pumps are ideal for a large range of spraying, cleaning, and transfer applications. Benefits of these pumps include:
• A compact, low cost design
• Mount directly to common tractor PTO shafts with
optional PTO coupler.
• Available counter clockwise standard rotation or
"-R" reverse rotation clockwise models

SPECIFICATIONS

• Pump Specifications
• Ports 3/4” x 3/4” NPT
• Max. Flow 22.5 GPM (85.2 LPM)
• Max. Pressure 300 PSI (20.7 BAR)
• Rotation Counter clockwise from shaft end
  -R model is clockwise from shaft end
• Speed 540 - 1000 RPM
• Construction Cast Iron
• Seals FKM Lip Type
• Shaft 15/16" Stainless Steel
• Bearings Sealed for long life
• Rotor Cast Iron
• Rollers Thermoplastic with metal core
• Fluid Temperature Maximum 140°F (60°C)
