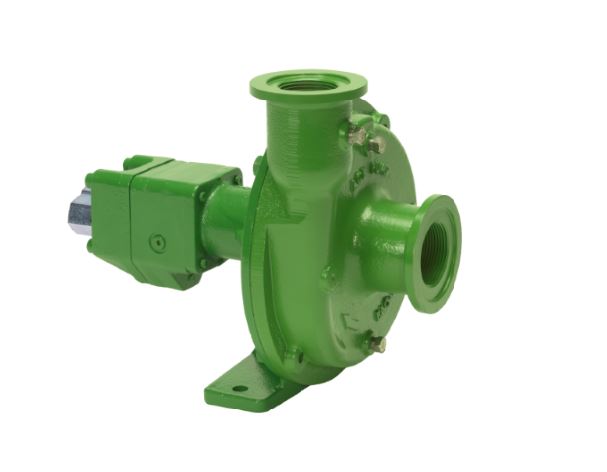

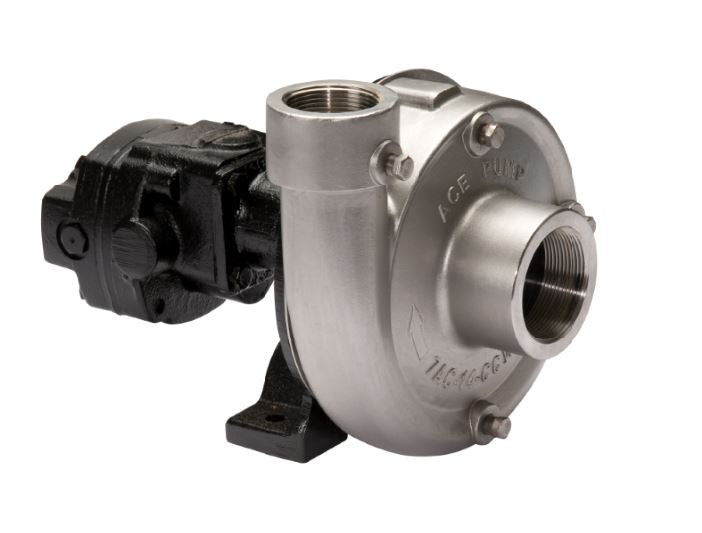

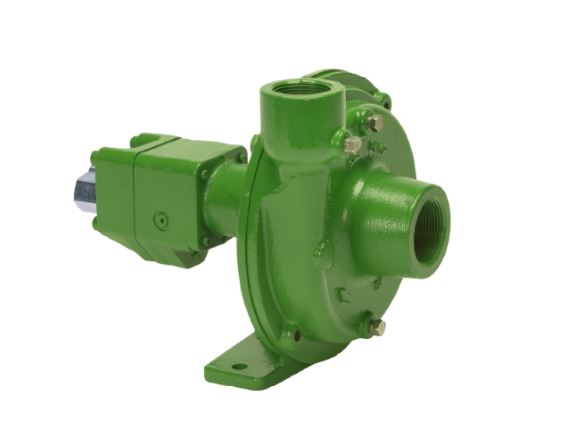

ACE PUMP FMC-200 pump hydraulic driven

• Ideal for spraying, large tank agitation, liquid transfer, and spray - transfer combinations
• 316 Stainless Steel (OPTION) Wet End for superior corrosion resistance
• Optional motor with integrated PWM (pulse width modulated) motor for precision applications
• The 210 motor requires 10 GPM (37.8 LPM) maximum hydraulic fluid input and fits virtually all tractor hydraulic systems. Recommended for:
  • Pressure Compensating Closed Center Systems
  • Load Sensing Closed Center Systems
  • Open Center Systems up to 19 GPM (71.9 LPM) using internal needle valve bypass
• The 304 motor requires 13 GPM (49.2 LPM) maximum hydraulic fluid input and fits virtually all tractor hydraulic systems. Recommended for:
  • Pressure Compensating Closed Center Systems
  • Load Sensing Closed Center Systems
  • Open Center Systems up to 22 GPM (83.2 LPM) using internal needle valve bypass
• The 306 motor requires 16.5 GPM (62.4 LPM) maximum hydraulic fluid input and fits virtually all tractor hydraulic systems. Recommended for:
  • Load Sensing Closed Center Systems
  • Open Center Systems up to 25.5 GPM (96.5 LPM) using internal needle valve bypass
• The 310 motor requires 25.5 GPM (96.5 LPM) maximum hydraulic fluid input and fits virtually all tractor hydraulic systems. Recommended for:
  • Open Center Systems up to 34.5 GPM (130.6 LPM) using internal needle valve bypass

If you need additional options added to your pump please call or email with specifics. Thank you.

1. FMSC - silicon carbide shaft seal for abrasives  add $103
2. CI  -  cast iron impeller add $106
3. PI  -  polypropylene impeller for 150 series models add $46
4. SI  -  316 stainless steel impeller for 150 series models add $301
5. BSP - British standard pipe thread ports no additional charge (no returns)
