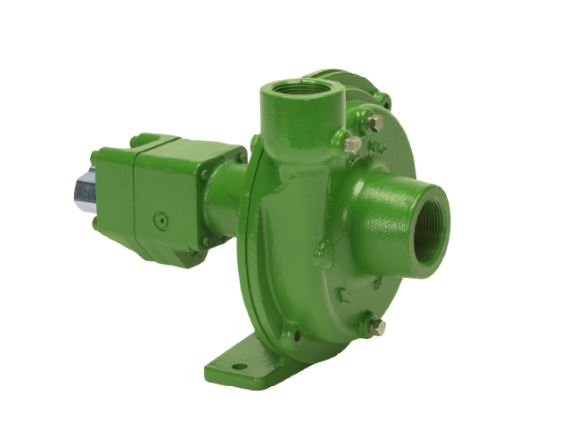

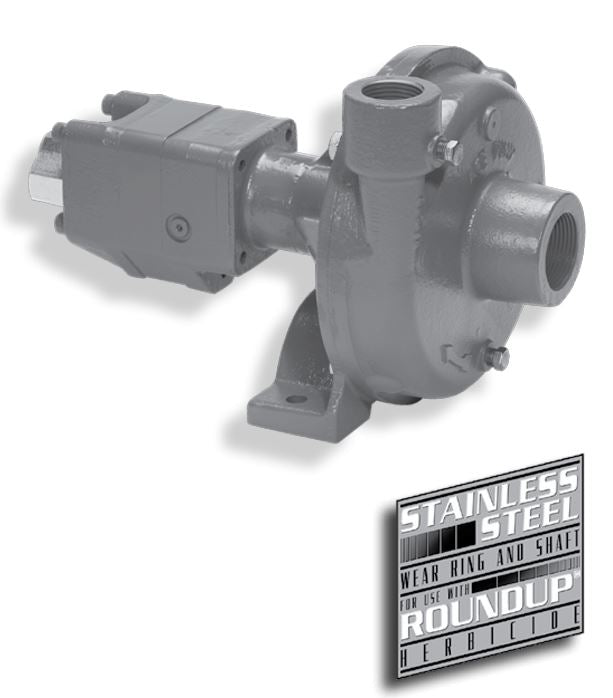

ACE PUMP FMC-HYD pump hydraulic driven

• •   Suction 1-1/4” Discharge 1”
     -204 motor requires 4 GPM (15.1 LPM)
    hydraulic flow on PC Closed and Open Center
    Systems
     -210 motor requires 10 GPM (37.9 LPM)
    hydraulic flow on LS Closed and Open Center
    Systems
      -310 motor requires 16 GPM(60.6 LPM)
    hydraulic flow on Large Open Center
    Systems
  • Integral Needle Valve bypasses up to 9 GPM
    (34 LPM) on Open Center Systems
  •  Standard Viton® Carbon/Ceramic seal
    or Optional Severe Duty Silicon Carbide
    Mechanical Seal
  •  Chemical Resistant Valox® or Optional Cast
    Iron Impeller
  •  Stainless Steel Shaft and Wear Ring

If you need additional options added to your pump please call or email with specifics. Thank you.

1. FMSC - silicon carbide shaft seal for abrasives  add $103
2. CI  -  cast iron impeller add $106
3. BSP - British standard pipe thread ports no additional charge (no returns)
