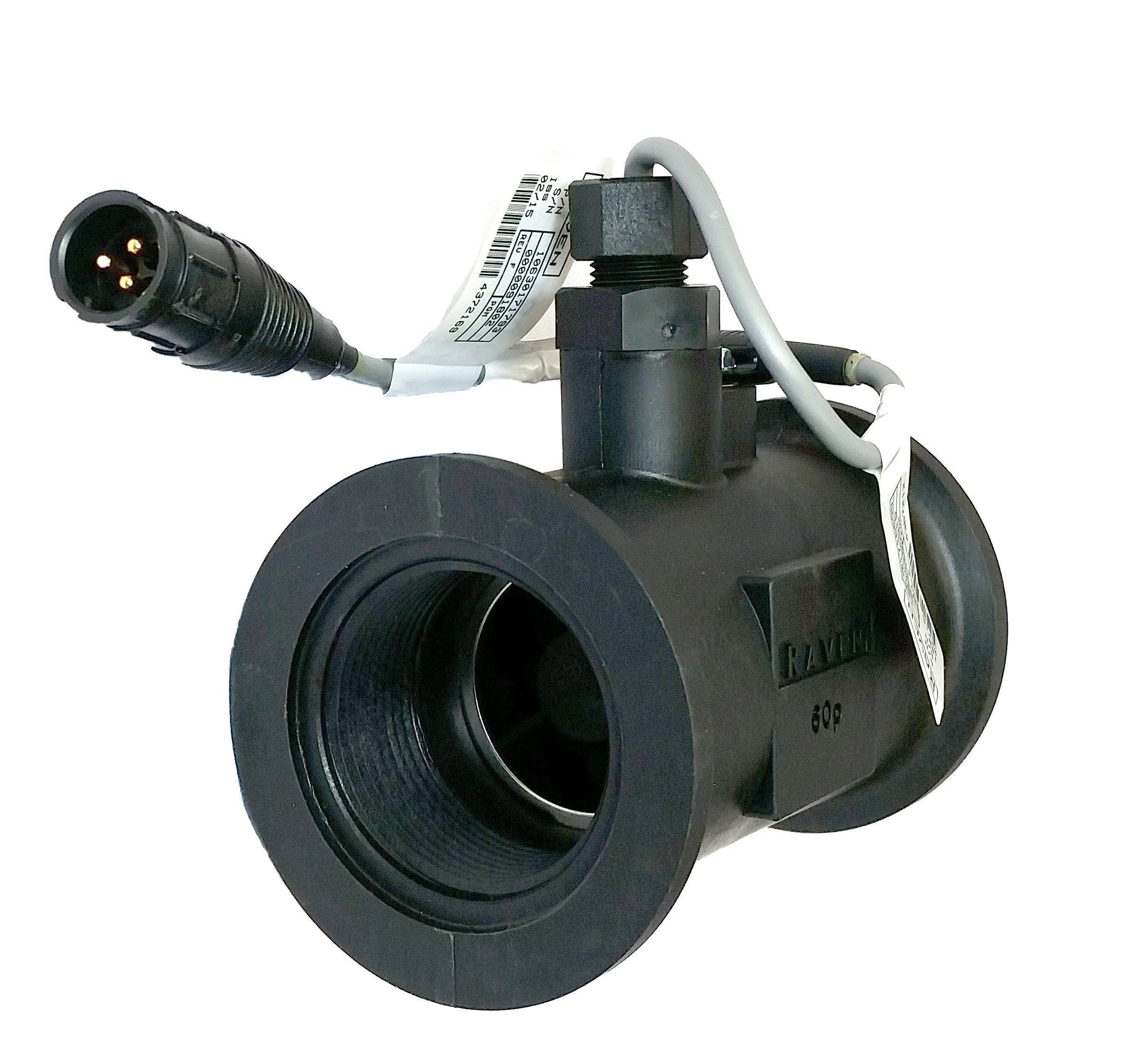

Case IH 87378188 - (Replaces Raven 063-0171-793) RFM 60P Poly Flow Meter (1-60 Gallons per Minute)

Case IH 87378188 - (Replaces Raven 063-0171-793) RFM 60P Poly Flow Meter (1-60 Gallons per Minute)

RFM Series of electronic turbine flow meters measure a wide range of liquids at various flow rates. These flow meters are economical, accurate, and very reliable. Raven RFM Flow Meters are compatible with most chemicals & liquids. A turn down ratio of 50:1 makes the RFM flow meters an excellent choice for agricultural applications

RFM 60P Poly Flow Meter Features - Specs

Inlet/Outlet: 1-1/2" FNPT or M200 Flanged

Pressure Rating: 175 PSI

Typ. Pulses/Gal: 72

Rated Capacity: 1-60 GPM

Body: Polypropelene

Measuring Mechanism: Turbine

5 VDC Supply Voltage

10 mA Supply Current
