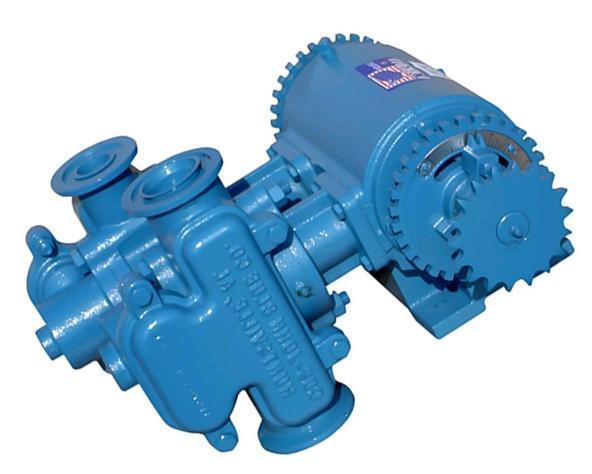

CDS-John Blue - Piston Pump - NGP-5655-ARF Series - double piston double acting - 10.2 GPM flow small side - 21 GPM flow large side

CDS-John Blue Piston Pump

NGP-5655-ARF

CDS-John Blue double action double piston pumps are the most reliable liquid fertilizer sytems on the market today.  The variable stroke of the NGP-5655-ARF pump has a rated flow of 10.2 GPM on the small side and a rated flow of 21 GPM on the large side.  Rated speed is 450 RPM's on this clutchless NGP-5655-ARF double piston-double action CDS-John Blue Pump.  This specific pump has a 1-inch inlet and outlet with 200-series flanges on the small side and 1.5 inch inlet and outlet on the large side with 220 series flanges standard.  With this pump you are able to apply two products at two rates from this reliable NGP-5655-ARF CDS-John Blue  double piston pump. All standard Piston Pumps are cast iron and manufactured with Viton Piston Packings and Buna O-rings and rod packings. Most commonly used with liquid fertilizers that have a pH greater than 5 and standard herbicides that are compatible with Buna and Viton. Application rates will not change due to temperature fluctuations.  All CDS-John Blue pumps are built to last, and engineered for performance.
