CDS-John Blue - Piston Pump - NGP-6055-HY KIT (includes hydraulic motor/ manifold)

Need Help Choosing the Right Pump? Check out our really in-depth pump buyer's guide. Just click here to read about how to choose the correct pump.

CDS-John Blue - Piston Pump - NGP-6055-HYF KIT includes hyd.  motor/ manifold - single piston double acting - 21.0 GPM - 120 PSI rated pressure

CDS-John Blue Piston Pump

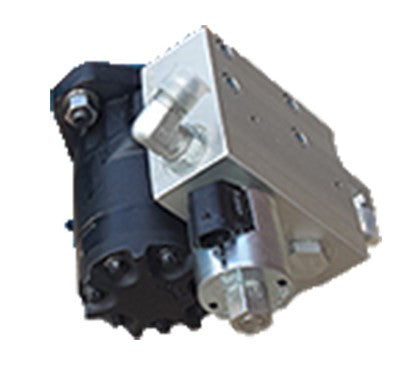

NGP-6055-HY and 11620591D hydraulic motor / manifold

CDS-John Blue double action single piston pumps are the most reliable liquid fertilizer systems on the market today.  The fixed stroke of the NGP-6055-HYF pump has a rated flow of 21.0 GPM with a rated pressure of 120 PSI.  Rated speed is 550 RPM's on this NGP-6055-HYF single piston-double action CDS-John Blue Pump.  This specific pump has 1.5" inlet and outlet 220 series flanges standard . When this pump is coupled with a flow divider you are guaranteed even application rated from this reliable NGP-6055-HYF CDS-John Blue piston pump. All standard Piston Pumps are cast iron and manufactured with Viton Piston Packings and Buna O-rings and rod packings. Most commonly used with liquid fertilizers that have a pH greater than 5 and standard herbicides that are compatible with Buna and Viton. Application rates will not change due to temperature fluctuations.  All CDS-John Blue pumps are built to last, and engineered for performance.

• Pump with flanges. Add "-F" after model part number (i.e., NGP-6055-F).
• Pump less the sprocket. Add "-K" after model part number (i.e., NGP-6050-K).
• RC40 chain 18 tooth sprocket. Add "-R" after model part number (i.e., NGP-6050-R).
• 316SS wet-end castings. Add "-S" after model part number (i.e., NGP-6050-S).
• Viton wet-end o-rings and rod packing. Add "-U" after model part number (i.e., NGP-6050-U).
