CDS-John Blue - Piston Pump - NGP-6059 Series - single piston double acting - 21.0 GPM - 120 PSI rated pressure
JBLNGP6059CDS-John Blue - Piston Pump - NGP-6059 Series - single piston double acting - 21.0 GPM - 120 PSI rated pressure

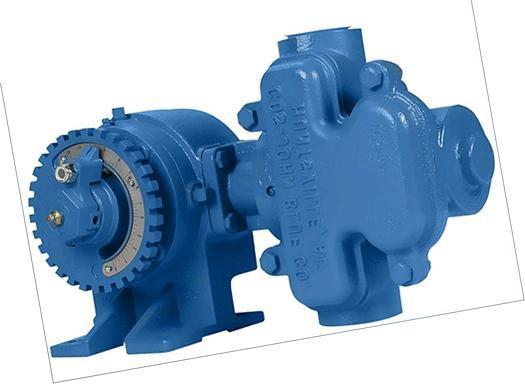

CDS-John Blue Piston Pump
NGP-6059
CDS-John Blue double action single piston pumps are the most reliable liquid fertilizer systems on the market today. The variable stroke of the NGP-6059 pump has a rated flow of 21.0 GPM with a rated pressure of 120 PSI. Rated speed is 450 RPM's on this hydraulic control clutch NGP-6059 single piston-double action CDS-John Blue Pump. This specific pump has a 1.5" FPT standard connection. When this pump is coupled with a flow divider you are guaranteed even application rated from this reliable NGP-6059 CDS-John Blue piston pump. All standard Piston Pumps are cast iron and manufactured with Viton Piston Packings and Buna O-rings and rod packings. Most commonly used with liquid fertilizers that have a pH greater than 5 and standard herbicides that are compatible with Buna and Viton. Application rates will not change due to temperature fluctuations. All CDS-John Blue pumps are built to last, and engineered for performance.
- Pump with flanges. Add "-F" after model part number (i.e., NGP-6055-F).
- Pump less the sprocket. Add "-K" after model part number (i.e., NGP-6050-K).
- RC40 chain 18 tooth sprocket. Add "-R" after model part number (i.e., NGP-6050-R).
- 316SS wet-end castings. Add "-S" after model part number (i.e., NGP-6050-S).
- Viton wet-end o-rings and rod packing. Add "-U" after model part number (i.e., NGP-6050-U).
