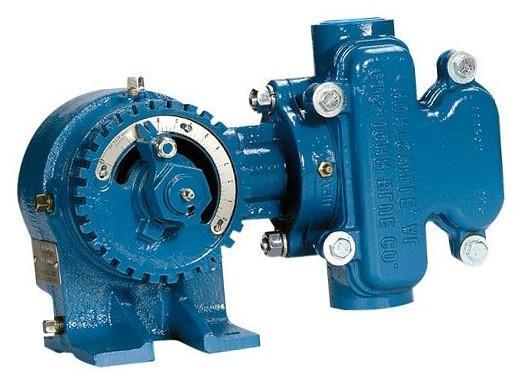

CDS-John Blue - Piston Pump - NGP-7050 Series - single piston double acting - 34.2 GPM - 120 PSI rated pressure-Mid-South Ag. Equipment

CDS-John Blue - Piston Pump - NGP-7050 Series - single piston double acting - 34.2 GPM - 120 PSI rated pressure

JBLNGP7050

CDS-JOHN BLUE

  • $3,015.48
  • Save $904.64
Shipping calculated at checkout.


Need Help Choosing the Right Pump? Check out our really in-depth pump buyer's guide. Just click here to read about how to choose the correct pump.

CDS-John Blue - Piston Pump - NGP-7050 Series - single piston double acting - 34.2 GPM - 120 PSI rated pressure

CDS-John Blue Piston Pump

NGP-7050

CDS-John Blue double action single piston pumps are the most reliable liquid fertilizer systems on the market today.  The variable stroke of the NGP-7050 pump has a rated flow of 34.2 GPM with a rated pressure of 120 PSI.  Rated speed is 450 RPM's on this rope control clutch NGP-7050 single piston-double action CDS-John Blue Pump.  This specific pump has a 1.5" FPT standard connection. When this pump is coupled with a flow divider you are guaranteed even application rated from this reliable NGP-7050 CDS-John Blue piston pump. All standard Piston Pumps are cast iron and manufactured with Viton Piston Packings and Buna O-rings and rod packings. Most commonly used with liquid fertilizers that have a pH greater than 5 and standard herbicides that are compatible with Buna and Viton. Application rates will not change due to temperature fluctuations.

Options:

  • Pump with flanges. Add "-F" after model part number (i.e., NGP-7055-F).
  • Pump less the sprocket. Add "-K" after model part number (i.e., NGP-7050-K).
  • RC40 chain 18 tooth sprocket. Add "-R" after model part number (i.e., NGP-7050-R).
  • 316SS wet-end castings. Add "-S" after model part number (i.e., NGP-7050-S).
  • Viton wet-end o-rings and rod packing. Add "-U" after model part number (i.e., NGP-7050-U).

Accessories:

  • 115670 - Manual Clutch Add-On - NGP Universal
  • 115671 - Hydraulic Clutch Add-On - NGP Universal
  • 115672 - Electric Clutch Add-On - NGP Universal
  • 115674 - Stainless Wet-End Conversion - NGP-7050 Series
  • 116000-01 - 1 1/2" NPT to 200 Series Flange Adapter, Ductile Iron
  • 116000-01S - 1 1/2" NPT to 200 Series Flange Adapter, Stainless Steel
