CDS-John Blue - Piston Pump - NGP-8050 Series - Double Piston - Double Acting - 42 GPM - 120 PSI

Need Help Choosing the Right Pump? Check out our really in-depth pump buyer's guide. Just click here to read about how to choose the correct pump.

CDS-John Blue - Piston Pump - NGP-8050 Series - Double Piston - Double Acting - 42 GPM - 120 PSI

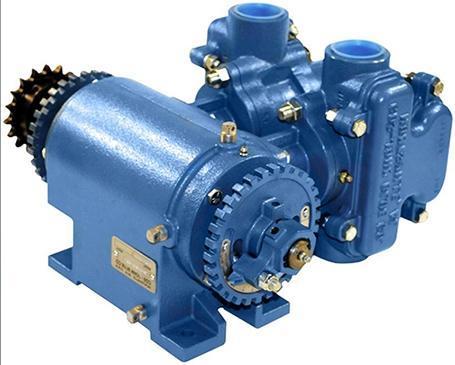

CDS-John Blue Piston Pump

NGP-8050

CDS-John Blue double action double piston pumps are the most reliable liquid fertilizer sytems on the market today.  The variable stroke of the NGP-8050 pump has a rated flow of 42 GPM with a rated pressure of 120 PSI.  Rated speed is 450 RPM's on this rope control clutch NGP-8050 double piston-double action CDS-John Blue Pump.  This specific pump has 1.5" inlet and outlet FPT standard connection. When this pump is coupled with a flow divider you are guaranteed even application rated from this reliable NGP-8050 CDS-John Blue piston pump. All standard Piston Pumps are cast iron and manufactured with Viton Piston Packings and Buna O-rings and rod packings. Most commonly used with liquid fertilizers that have a pH greater than 5 and standard herbicides that are compatible with Buna and Viton. Application rates will not change due to temperature fluctuations.

Options:

• Pump with flanges. Add "-F" after model part number (i.e., NGP-7055-F).
• Pump less the sprocket. Add "-K" after model part number (i.e., NGP-7050-K).
• RC40 chain 18 tooth sprocket. Add "-R" after model part number (i.e., NGP-7050-R).
• 316SS wet-end castings. Add "-S" after model part number (i.e., NGP-7050-S).
• Viton wet-end o-rings and rod packing. Add "-U" after model part number (i.e., NGP-7050-U).

Accessories:

• 115670 - Manual Clutch Add-On - NGP Universal
• 115671 - Hydraulic Clutch Add-On - NGP Universal
• 115672 - Electric Clutch Add-On - NGP Universal
• 115674 - Stainless Wet-End Conversion - NGP-7050 Series
• 116000-01 - 1 1/2" NPT to 200 Series Flange Adapter, Ductile Iron
• 116000-01S - 1 1/2" NPT to 200 Series Flange Adapter, Stainless Steel
