CDS-John Blue Standard Liquid Blockage Monitor System - BM-08PL - 8 Row Planter Kit

CDS-John Blue Standard Liquid Blockage Monitor System - BM-08PL - 8 Row Planter Kit

You can easily know your liquid application flow from the cab of your tractor with this LBMS from CDS-John Blue. Identify which row is being under-applied before your yields are diminished costing valuable time and money. This patented system shows you both low-flow and no-flow problems in real-time, which means you can correct it immediately without costly errors. No more second guessing if any of your delivery lines are plugged!

Features

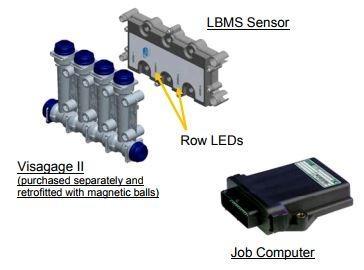

• The BM-08PL has magnetic sensing technology mounted behind liquid or NH3 VisaGage II Flow Monitors

• Can be mounted to existing units, new magnetic balls are supplied
• BM-08PL identifies where magnetic balls are floating in each row during application
• Shows low flow and no flow easily

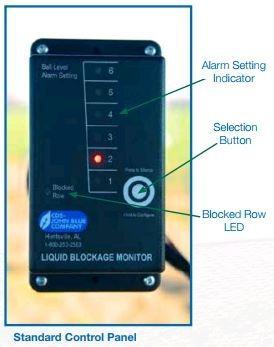

• Visual display shows alarm and audible alarms from inside your tractor
• Can be used with many different types of liquids, led light shows visible to the sides of the columns
• Each row with a problem, will be highlighted by a flashing LED light at the row, eliminating time consuming searches
• Alarm resets automatically, when blockage is cleared
• BM-08PL can pause to capture problem rows for investigation later when you are able to stop
• Available option: Standard wire controller

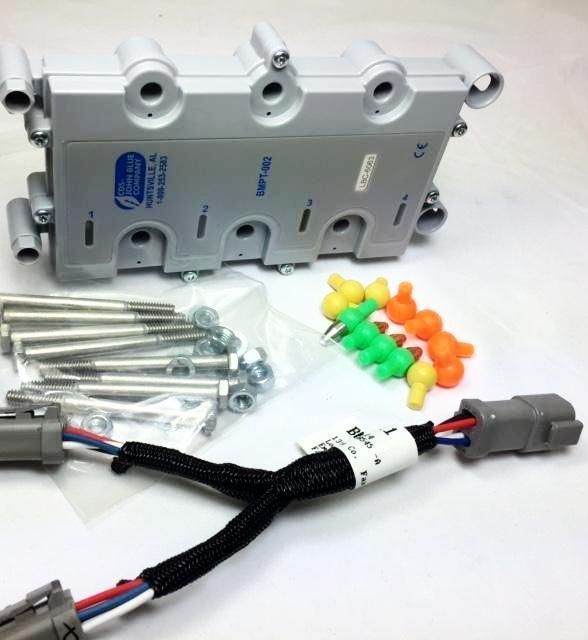

Kit includes

• Control panle mounting bracket
• Input harness
• 28 ft. extension harness
• Tee harness
• Two standard sensor kits
• 2 terminator plugs
• 2 fifteen foot extension harnesses
