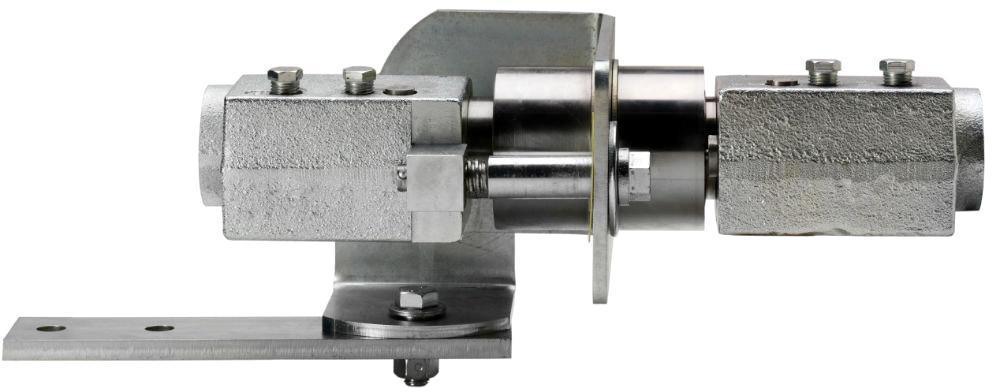

Continental NH3 - A-SWV-125 - 1-1/4" Full Port Swing Valve Tool Bar Breakaway Coupler with BracketA-SWV-125
Continental NH3 - A-SWV-125 - 1-1/4" Full Port Swing Valve Tool Bar Breakaway Coupler with Bracket
Continental NH3 1-1/4" Swing Valve Design provides minimal restriction - allowing Maximum flow rates thru the toolbar break away coupler.
The through hole is a full 1-1/4”. All the components, except the ductile iron housing, are made of stainless steel, so rust and corrosion are virtually eliminated. No more trouble disconnecting and reconnecting either, this coupler comes with a built in bolt that assists in taking it apart for maintenance.
Full port 1-1/4” through holes
Practically no pressure drop Swing valve style checks that swing out of the flow for superior flow characteristics
All Stainless Steel, except housing, prevents rust and corrosion
Built-in reconnection and disconnection acme bolt
Dual 1/4” pipe ports on each side for bleeder valves and hydrostats
35 percent larger than other units
