DURA-ABS - Auto Batch System 110v EPDM seals - DPABS-4315E

Auto Batch System 110v EPDM seals

FEATURES

• Intuitive interface allows for the selection of manual or automatic operation with the flip of a switch
• High-flow pump with up to 18 GPM / 68 LPM flow rate
• Optimized for repeatable batching; returns to the last volume amount dispensed
• 100% moisture-sealed circuitry
• Includes Dura-Meter™ with impact resistant Lexan™ faceplate
• Available in 12 Volt or 110 Volt, and EPDM, Viton® or Silicone options
• Measures in gallons, liters and ounces
• Features a 2-year Warranty & Maintenance Program

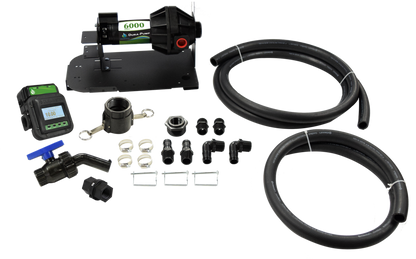

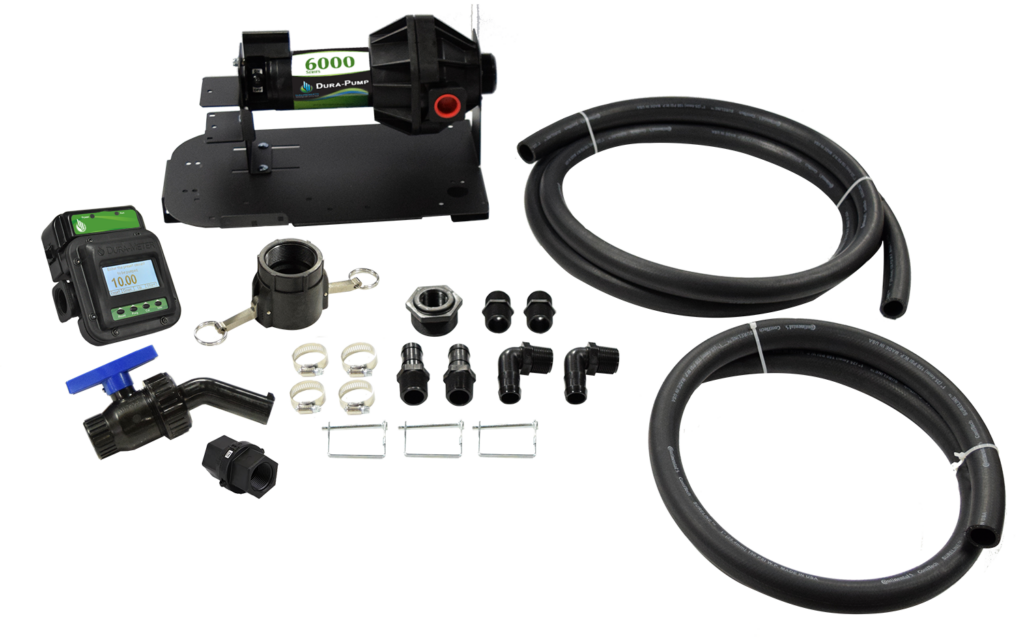

The Dura Auto-Batch System is an automated herbicide transfer system for easily and efficiently transferring fluids from one place to another. The operation is as simple as entering the amount you want dispensed and pressing Start.  Once activated, the pump will dispense the desired amount, then shut off automatically.

The intuitive interface of the Auto-Batch System allows for the selection of manual or automatic operation with the flip of a switch. Our high-flow Dura-Pump™ delivers up to a 18 GPM flow rate. The system is optimized for repeatable batching. The Dura-ABS returns to the last volume amount dispensed upon completion of the cycle.  The Dura-Meter™ has 100% moisture sealed circuitry so it fully eliminates fogging, water damage or any other damage from corrosive elements.

With an impact resistant Lexan faceplate and illuminated display, the Dura-Meter™ is the made of the most robust materials while maintaining maximum visibility in all conditions.  Like all our products, the Dura-ABS™ is available in 12 Volt or 110 Volt, EPDM, Silicone or Viton® options. As always, Dura Products stands behind our products and in front of the competition with a 2 year warranty.

DURA AUTO BATCH SPEC SHEET

ASSEMBLY GUIDE / CALIBRATION
