Dura Products | FastBatch MultiJet

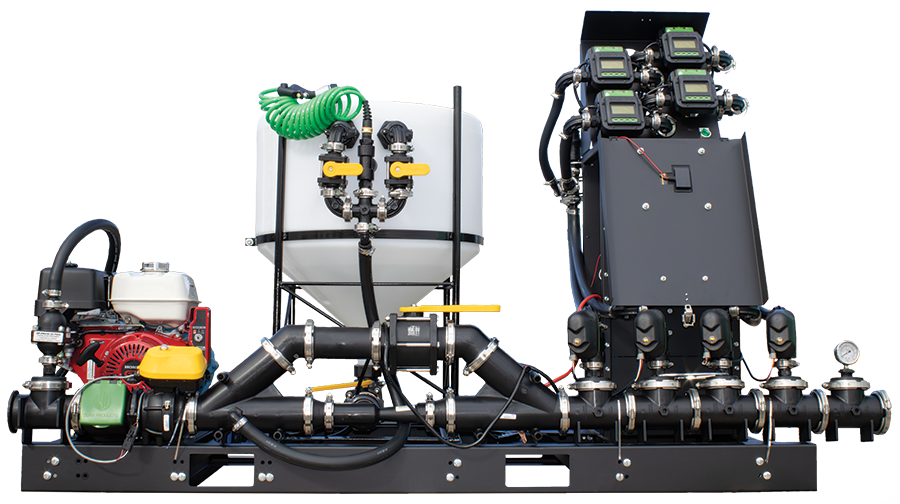

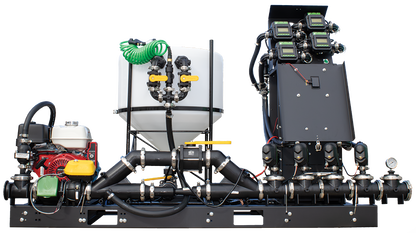

FASTBATCH MULTIJET: The Fastest, Simplest, Safest Way to Mix and Spray

Please enquire with us if you need a pump with this unit, they DO NOT come with pumps.

Fast: Speed and Productivity
Spray More in Less Time: With the fastest mixing system on the market, reduce mixing and filling times by up to 75%.
Increase Productivity: Spend less time waiting and more time spraying, helping you cover more ground and get the job done faster.
Efficiency Redefined: Designed for high performance, the FastBatch MultiJet ensures seamless operation for any spraying application.

Simple: Familiar and Reliable
Easy to Use: Incorporates familiar, reliable components for a straightforward operation.
Common Parts: Built with widely available parts, making maintenance and repairs a breeze.
User-Friendly Design: Designed for ease of use, even for operators new to the system.

Safe: Protect Your Crops, Your Team, and the Environment
Unmatched Accuracy: Precise mixing ensures every batch meets your specifications.
Worker Safety First: Reduce exposure risks with a system designed for operator safety.

Features & Benefits:

• Delivered fully assembled, our system includes Dura 1” Electric Valves, a 40 gallon cone, Auto-Batch™ High-Flow carrier system, all securely mounted on a durable metal frame with forklift slots for easy transport and install.
• Easy Flange Connections: Flange connections simplify assembly and disassembly, making maintenance and adjustments easier than traditional threaded connections.
• Enhanced Calibration with Poppet Connections*: Upgraded poppet connections for calibration, reducing spillage compared to camlock fittings.
• Recirculation**: Chemical totes can be recirculated which maximizes pesticide effectiveness.
• Protective Meter Lid & Solar Panel: A sturdy lid shields meters from external elements and potential damage with a solar panel to keep the battery trickle charged.
• Includes a 2-year Warranty & Maintenance Program


*Before starting the calibration process, make sure the 1” Dura electric valves are closed with the red indicator illuminated.  Disconnect the associated Dura electric valve at its’ Deutsch direct plug connection.  This is imperative to prevent concentrated chemical from entering the injection manifold.
**Before turning on the pump, make sure the 1” Dura electric valves are closed, with the red indicator illuminated.  Disconnect the associated Dura electric valve at its’ Deutsch direct plug connection.  This is imperative to prevent concentrated chemical from entering the injection manifold.



Specifications:

Main Plumbing Size: 2” or 3”

---

Meters: Auto-Batch™ High-Flow & Auto-Batch™ Meters

---

Voltage: 12 Volt DC / 110v

---

Connections: M100-M200-M300 Flanges

---

EV Open/Closed Indicator: Yes

---

Wiring: On/Off 3 Wire

---

Connector: 4 Pin Deutsch

---

Calibration Connection: Dry Poppets

---

Cone: 40 gallon w/chem knife & rinse set up

---

Maximum Pressure: 150 PSI

---

Storage Temp: -40° to 185° F (-40° C to 85° C)

---

Operating Temp: 32° to 158° F (0° C to 70° C)

---

Wetted Materials: Glass Filled Polypropylene, 304 & 316 Stainless Steel, PTFE & Carbon Graphite filled PTFE, EPDM, Viton™,Ryton™,Santoprene, PVDF Kynar™

---

System Dimensions: 92.657” L x 37.003” W
