Flowserve Scienco | SEM-10 Fixed Mount Electronic Flow MeterSEM10
Accurate Metering Made Simple
When you're measuring your flow rates with costly chemicals or important applications, it needs to be right. The SEM-10 electronic flow meter from Flowserve Scienco can put your mind at ease, with near flawless meter accuracy, one can see why this is a best seller.

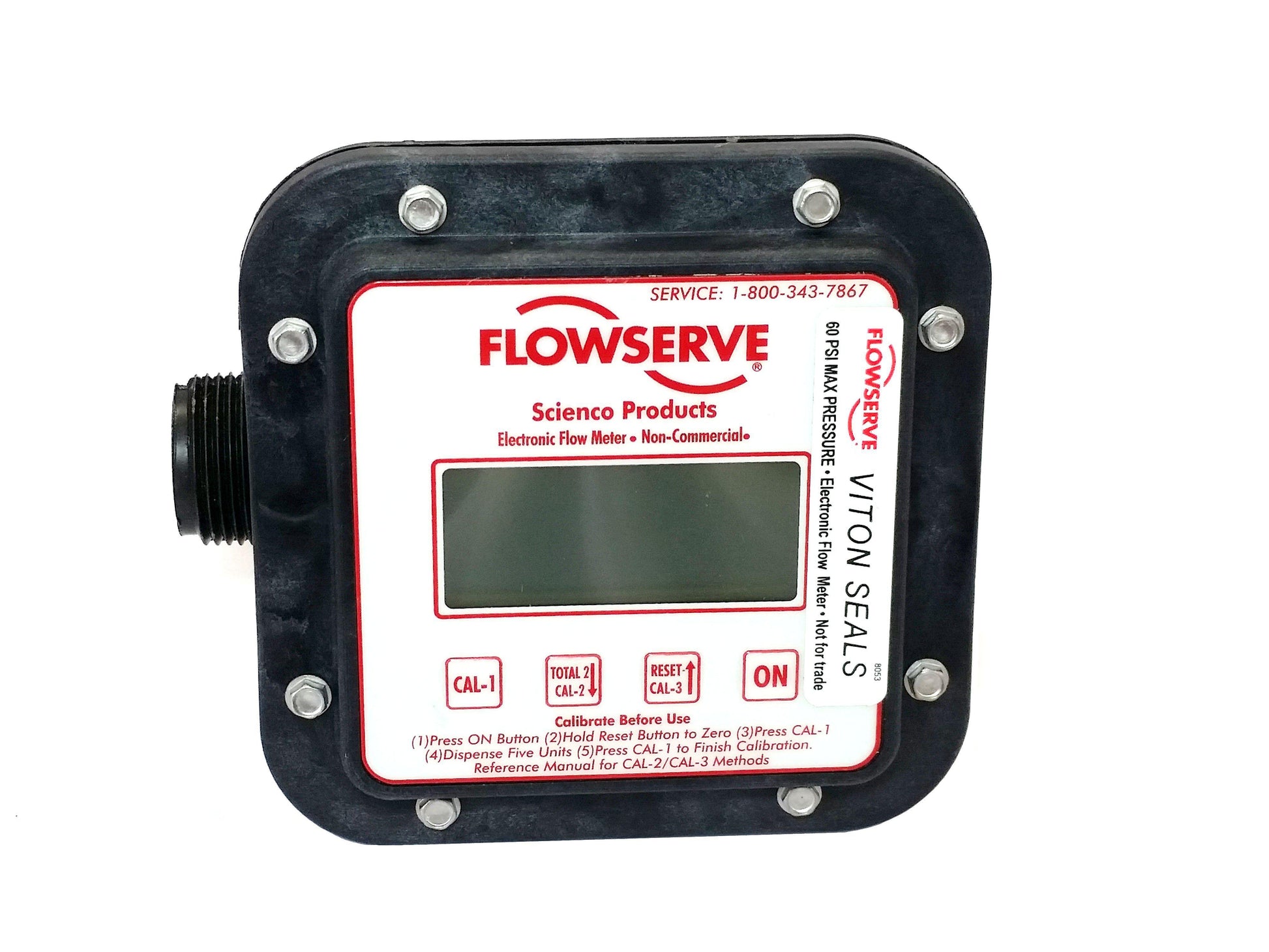

The Scienco SEM-10 (Flow-Through) electronic flow meter uses positive displacement nutating disk technology to meter liquids of various viscosity with great accuracy & nominal pressure loss. With the largest LCD display available on the market, large positive touch buttons and simple one-touch operation, the SEM-10 and SEM-10FT flow meters are easy to read and to use.

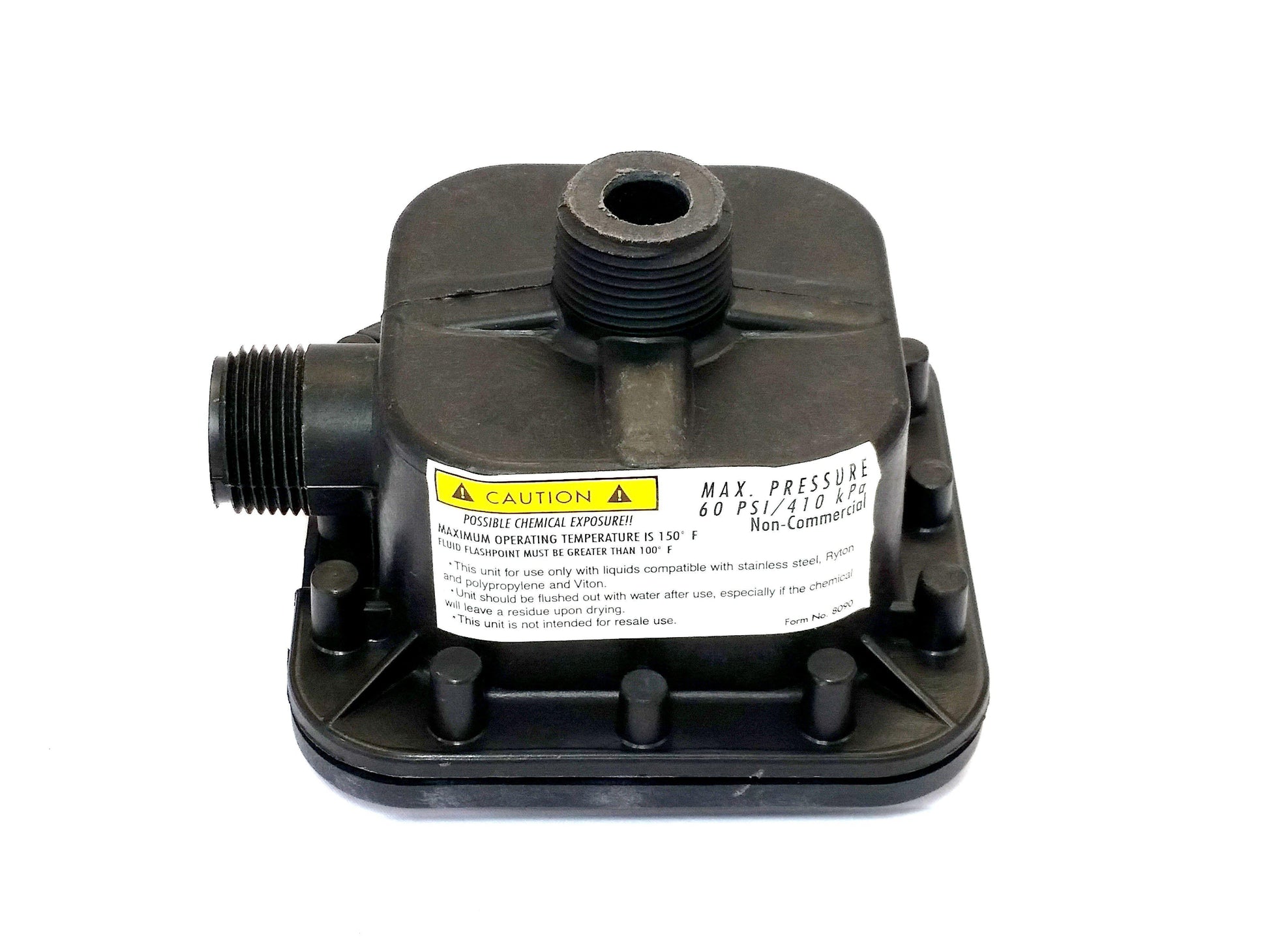

The SEM-10 meter mounts directly to the pump discharge via a 25 mm (1 inch) rear port. The flow-through configuration of the SEM-10 enables the meter to be mounted at hose end. Automatic shut-off feature will power unit off after 40 seconds of inactivity to preserve battery life.
Applications: Agriculture, Chemical Transfer, Non-flammable liquids, Light oils, Inks, Automotive fluids.
• Flows from 0.5 to 6.8 m3/h (2 to 30 gpm)
• Temperatures to 55°C (130°F)
• Pressures to 4 bar (60 psi)
• Accuracy to +/- 0.5%
• Totals to 999 999
Features and Benefits:
Fixed Mounting or Flow Through Configurations provide application flexibility
Positive Displacement Nutating Disk Design meters liquids of various viscosity with great accuracy and minimal pressure loss
Simple, One-touch Operation with large, positive touch buttons
LCD Display measures 20 mm (0.75 in) and is the largest on the market
Choice of Three Calibration Modes to suit application needs
Extended Battery Life is provided by one 3-volt lithium battery
Auto Shut-off after 40 seconds of inactivity saves battery life. Auto wake-up occurs when pumping resumes
