HYPRO | 9303 Series Centrifugal Pump
9303CHM1CU
Need Help Choosing the Right Pump? Check out our really in-depth pump buyer's guide. Just click here to read about how to choose the correct pump.

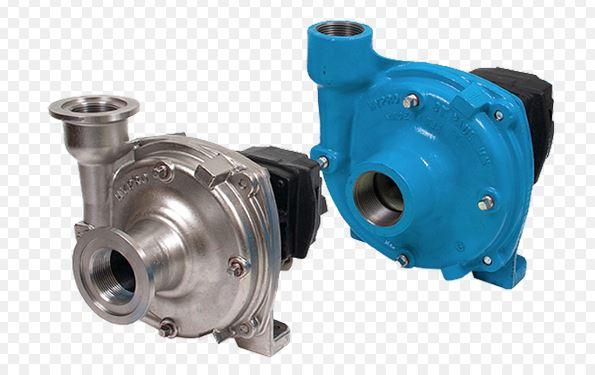

HYPRO - Forcefield Centrifugal Pump 9303 Series
HYPRO - Forcefield Centrifugal Pump 9303 Series
FEATURES
- Pump Port Sizes:
- 1-1/2" NPT inlet, 1-1/4" NPT outlet
- 220 inlet x 200 outlet universal flange available (U)
- Hydraulic motor drive available for open, closed center, and load-sensing systems
- Internal gear gerotor motor
- Hydraulic Ports:
- 1/2" NPT inlet x 3/4" NPT outlet standard
- -8 SAE ORB inlet x -10 SAE ORB outlet available
- 316 Stainless Steel available for extended pump life
MATERIALS
- Housing: Cast iron (316 stainless steel available)
- Impeller:
- Cast Iron Models -- Nylon Standard; GTX available
- Stainless Steel Models - Polypropylene Standard; GTX available
- Pump Seals:
- Cast Iron models -- Viton/ceramic standard; Life Guard silicon carbide (B) available
- Stainless Steel models -- Life Guard silicon carbide standard
- Life Guard seals are the industry standard on OEM equipment
- Hydraulic motor seal: double-lip Teflon® and case drain available
