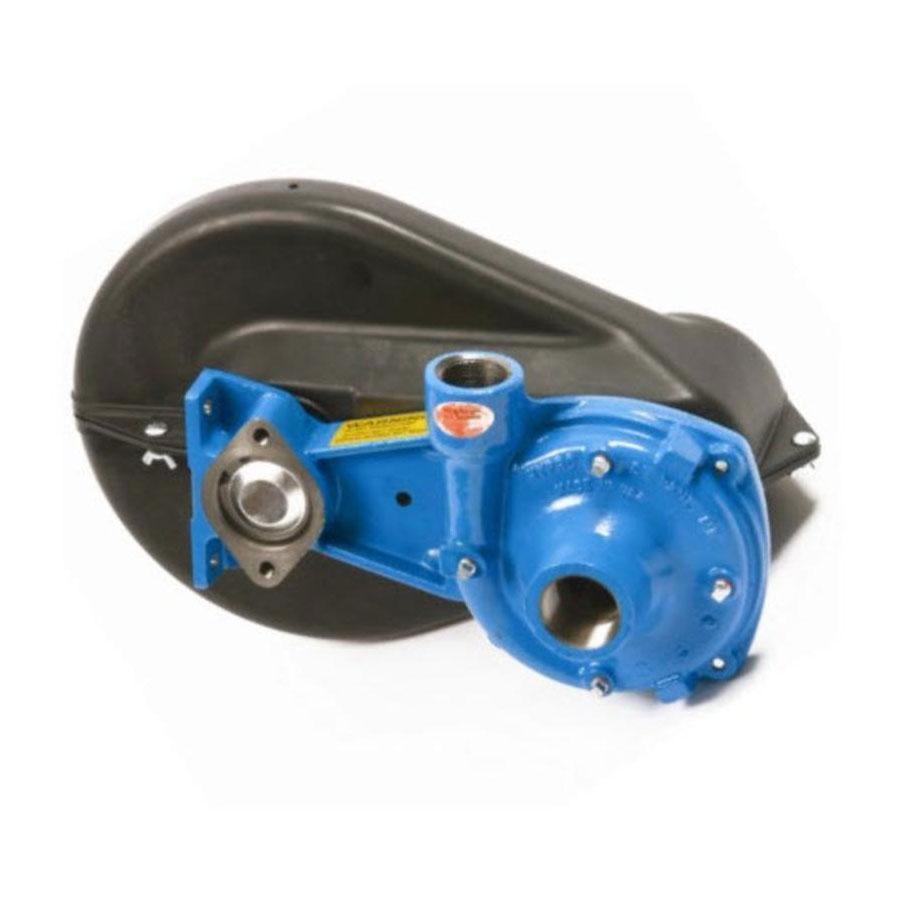

Hypro Belt-Driven Centrifugal Pump with Solid Shaft
9402C1000S
Need Help Choosing the Right Pump? Check out our really in-depth pump buyer's guide. Just click here to read about how to choose the correct pump. Hypro Belt-Driven Centrifugal Pump with Solid Shaft
Centrifugal Pump Features
- Drive: 12-groove belt
- Spring-loaded belt tensioner
- Stainless steel wear ring
- Stainless steel pump shaft, standard
- Port Sizes: 9402 models -1-1/4"NPT inlet, 1"NPT outlet 9403 models-1-1/4"NPT outlet
- Max. fluid temperature: 140 F/60 C
- Impeller: Cast iron models nylon; Poly & Stainless steel models- Polypropylene
- Pump Shaft rotation: Counter clockwise when looking at shaft end
- Pump seals: Viton/ceramic standard; Life Guard silicon carbide (B) available
- Life Guard seals are the industry standard on OEM equipment
- Weight:40-45lbs/18.2-20.5 kg
