ANNOVI REVERBERI

Hypro Diaphragm Pump 9910-GS40GI Control Unit (GI40) (GIC40)

Hypro Diaphragm Pump 9910-GS40GI Control Unit (GI40) (GIC40)

$220.94 USD
$220.94 USD $334.76 USD SAVE $113.82
Free ground shipping on orders over $99 less than 20lbs
Quantity
Guaranteed Secure Checkout
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • FREE SHIPPING ON ORDERS OVER $99,LESS THAN 20LBS
  • FREE RETURNS WITHIN 30 DAYS
  • TRUSTED BY OVER 100K CUSTOMERS
Hypro Diaphragm Pump 9910-GS40GI Control Unit (GI40) (GIC40)

$220.94 USD

Description

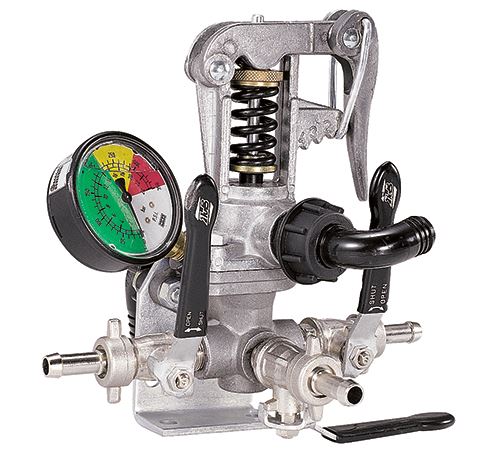

GI40 control unit for medium pressure diaphragm pumps with working pressure regulating valve and glycerine bath pressure gauge with coloured dial.

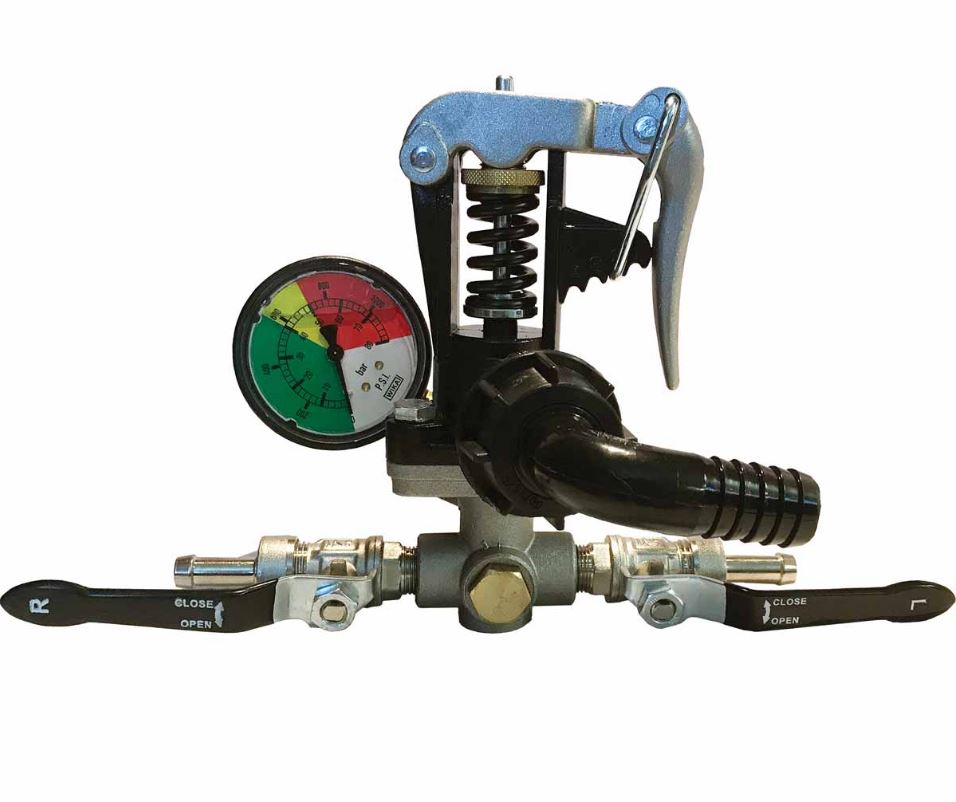

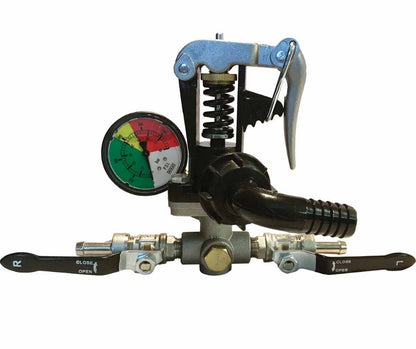

Annovi Reverberi GIC40 diaphragm pump control unit with working pressure regulator valve and glycerin filled pressure gauge with colored dial.

GIC40 includes cataphoresis coated valve body and ceramic relief valve seat.

Works with:

  • AR30, AR50, AR303, AR403 + AR503
  • 140°F max temperature
  • 1/2" NPT - Inlet
  • 3/4" Return
  • 1/2" Outlet

Control Unit Features

  • For Pump Model 9910-D30,D50, D303, D403, and D503
  • 1/2" hose barb inlet
  • Pressure gauge, one adjustable high-pressure relief valve, one complete bypass level two 3/8" HB outlets with individual shut-offs, and 3/4" hose barb bypass; Remounting kit: 9910-KIT1741
  • Max Flow: 21 gpm (79.5 lpm)
  • Max Pressure: 580psi (40 bar)
  • Weight: 3.5lb (1.6 kg)
