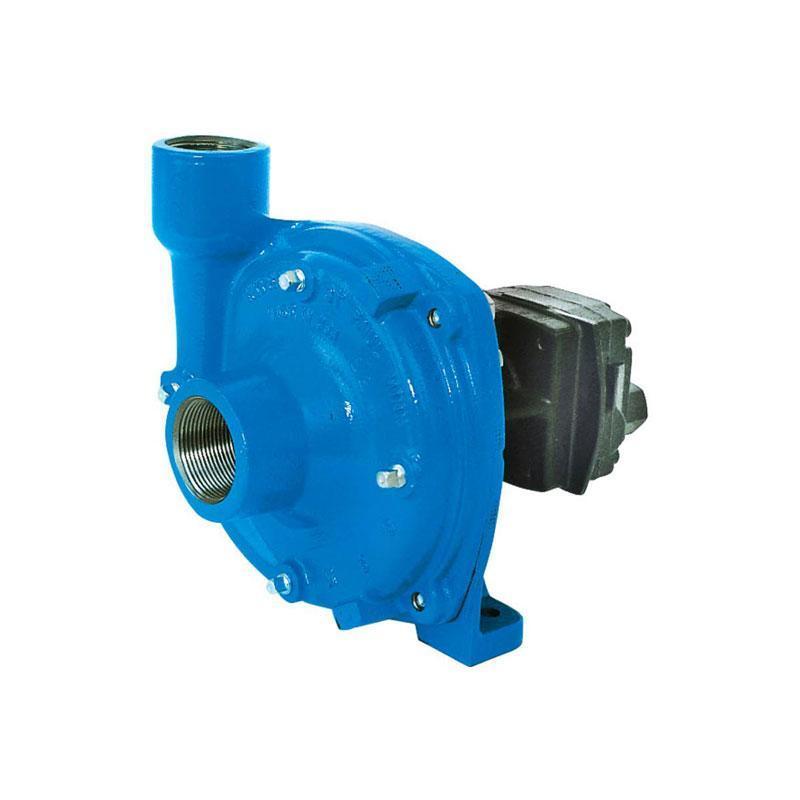

Hypro - Hydraulically-Driven Centrifugal Pump w/ Open/Closed Hydraulic Selection System

9302CHM1C

HYPRO

  • $735.99
  • Save $151
Shipping calculated at checkout.


Need Help Choosing the Right Pump? Check out our really in-depth pump buyer's guide. Just click here to read about how to choose the correct pump. Hypro Hydraulically-Driven Centrifugal Pump with Open/Closed Hydraulic Selection System

Centrifugal Pump Features

  • Hydraulic motor drive (for open center, closed center, and load-sensing systems)
  • Port Sizes: 1-1/4"NPT inlet, 1"NPT outlet
  • Motor: internal gear gerotor
  • Hydraulic ports:1/2"NPT inlet, 3/4" NPT outlet -HM Series
  • Hydraulic ports on GM1 Series: 7/8" 14UNF #10 SAE
  • Max. fluid temperature: 140 F/60 C
  • Available in cast iron and 316 stainless steel for extended pump life
  • Impeller: Nylon- cast iron models
  • Stainless steel-polypropylene
  • Pump seals: Cast Iron models Viton/ceramic standard; Life Guard silicon carbide (B) available; Stainless Steel models -Life Guard silicon carbide standard
  • Life Guard seals are the industry standard on OEM equipment
  • Hydraulic motor seal: double-lip Teflon and case drain available
  • Max. motor psi:3000 (bar: 207)
  • Weight:26./11.8 kg
