MP Pumps - 2" x 2" Self-Priming Petroleum Pump

Need Help Choosing the Right Pump? Check out our really in-depth pump buyer's guide. Just click here to read about how to choose the correct pump.

Petroleum 8 self-priming centrifugal pumps are capable of creating vacuum sufficient to lift liquids from heights up to 25 feet above the source. To handle many different fuels, the Petroleum 8 is available in three distinct models: PO, PG and PE 8.

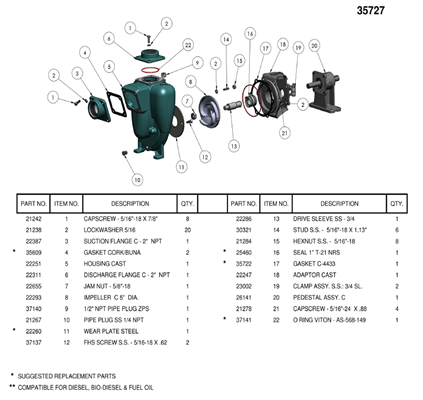

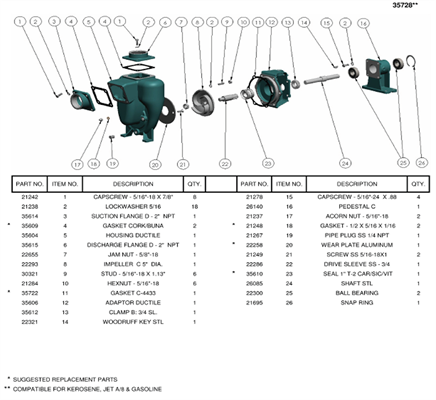

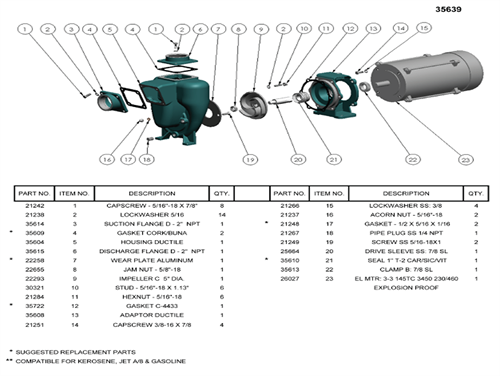

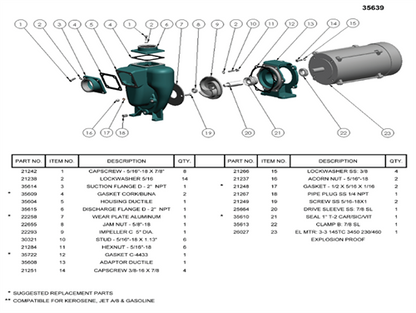

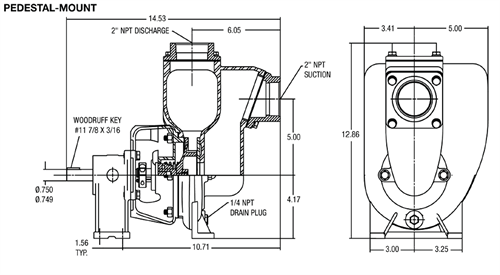

A Petroleum 8 PumPAK® is a fully assembled and run tested pump end that can be easily coupled to a number of drivers such as hydraulic motors, 56C and 145TC frame motors and gas engines. A bearing pedestal is also available for T-frame motor or belt drive.



Standard features include SS drive sleeve, SS fasteners, renewable wear plate, and a semi-open dynamically balanced impeller.


The Petroleum 8 Pump is available in three distinct models: PG, PO and PE

Model PG Pumps – Compatible For Gasoline, Kerosene, Avgas & Jet Fuel
Model PO Pumps – Compatible For BioDiesel, Fuel Oil & Diesel

SUCTION AND DISCHARGE: 2” x 2" NPT

APPLICATION: Agricultural, Industrial, Marine, OEM

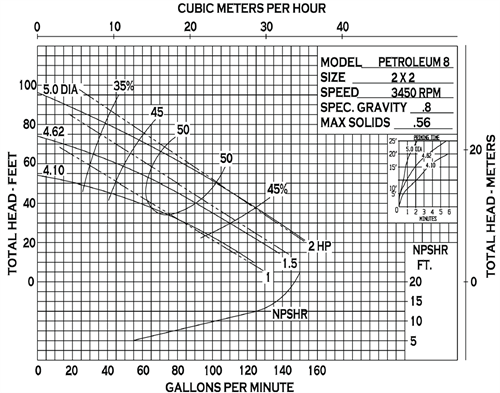

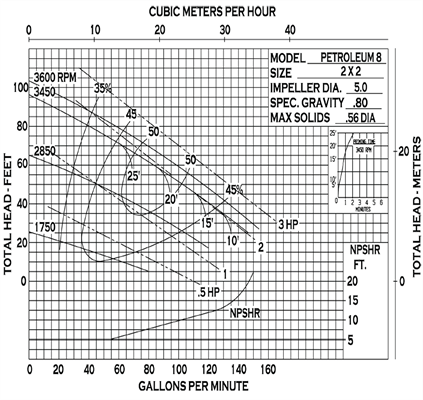

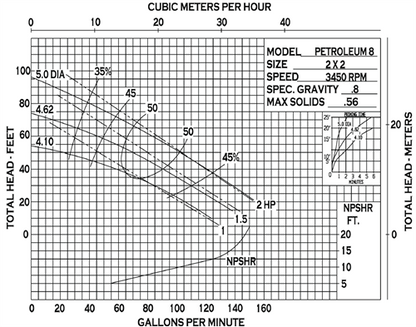

FLOW: Up to 150 GPM

HEAD FEET: UP to 100'

IMPELLER: PE- semi-open cast iron, 316 SS (optional), PG- 8- semi-open cast iron, aluminum (optional), PO 8- semi-open cast iron

MOTOR: Up to 3 HP

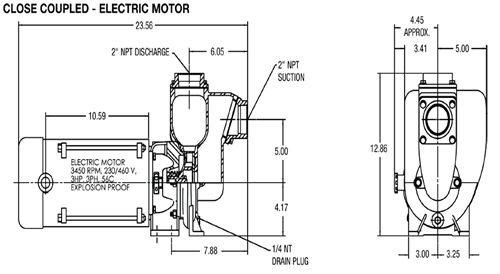

DRIVE OPTIONS: Close coupled 56C, Engine mount 5.5 HP, Engine mount 6.5 HP, Hydraulic motor .22 cu. in, Hydraulic motor .37 cu. in., Hydraulic motor .45 cu. in., Close coupled 145TC, Pedestal, PumPAK® (without motor)

COMPATIBLE FOR: PE 8 – ethanol, E 85, PG 8 – gasoline, avgas, kerosene, jet A/8, PO 8 – biodiesel, fuel oil, diesel

OPTIONS: 5 blade impeller available for higher flows

MOUNTING OPTIONS: PE 8 – explosion proof, class 1, group D, PG 8 – explosion proof, class 1, group D, PO 8 – TEFC

FEATURES:

• Gas engine for diesel fuel transfer
• Non-spark clamp (on some models)
• Renewable wear plate
• Stainless steel drive sleeve
• Stainless steel fasteners
• Up to a 25' suction lift
