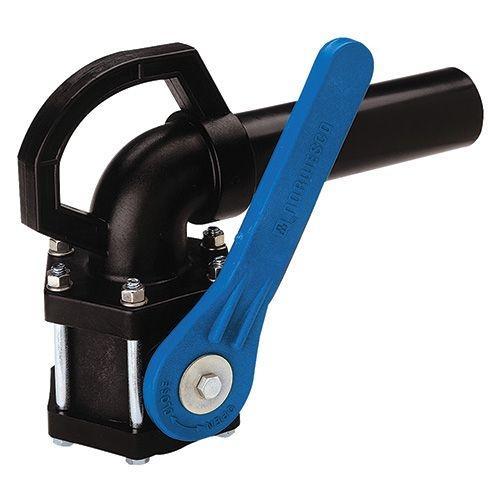

Norwesco 2" Full Port Ball Valve w/ Angle Nozzle

60546

NORWESCO

Shipping calculated at checkout.

2" Ball Valve -6 Bolt - Full Port with Nozzle

2"Female Pipe Thread X 2" Female Pipe Thread 6 Bolt Full Port Ball Valve with Nozzle

Features

Teflon seats allow self aligning ball to rotate freely

Low Torque operation allowed by unique body to flange design

Viton O-ring stem seal - EPDM O-ring body seal

Material: Polypropelene - glass reinforced

Strength: Heavy Duty

Bolt Material: Stainless Steel

Threads: NPT

Chemical resistance: Excellent

Pressure Rating: 1/2" - 3" - 100 p.s.i. @ 0⁰ F • 125 p.s.i @ 70⁰ F • 70 p.s.i. @ 150⁰ F

4" - 70 p.s.i. @ 0⁰ F • 90 p.s.i. @ 70⁰ F • 50 p.s.i. @ 150⁰F
