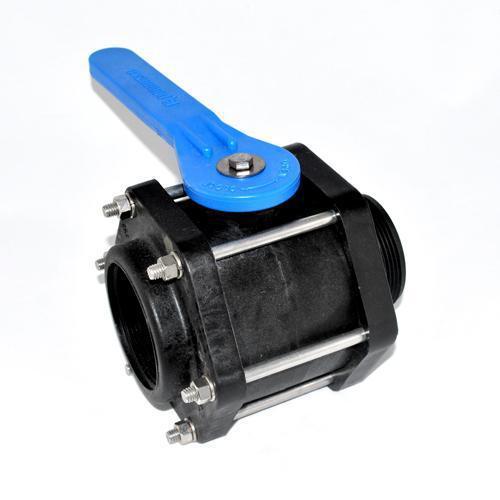

Norwesco 62047 - 3" Full Port 6-Bolt Ball Valve MPT X FPT

62047

NORWESCO

Shipping calculated at checkout.

3" Ball Valve - 6 Bolt - Full Port

3"Female Pipe Thread X 3" Male Pipe Thread 6 Bolt Full Port Ball Valve

Standard Port Opening = 1-1/2"

Features

Teflon seats allow self aligning ball to rotate freely

Low Torque operation allowed by unique body to flange design

Viton O-ring stem seal - EPDM O-ring body seal

Material: Polypropelene - glass reinforced

Strength: Heavy Duty

Bolt Material: Stainless Steel

Threads: NPT

Chemical resistance: Excellent

Pressure Rating: 1/2" - 3" - 100 p.s.i. @ 0⁰ F • 125 p.s.i @ 70⁰ F • 70 p.s.i. @ 150⁰ F
