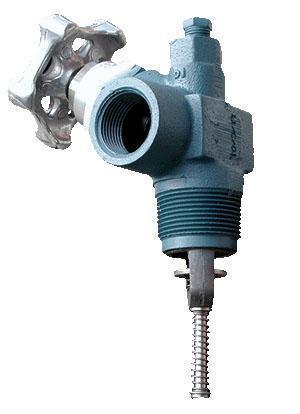

Rego A8017DH - NH3 Liquid Withdrawal Valve -1-1/4" MPT X 1" FPT
Rego A8017DH - NH3 Liquid Withdrawal Valve -1-1/4" MPT X 1" FPT
Regular price
$185.00 USD
Sale price
$185.00 USD
Regular price
$329.25 USD
SAVE $144.25
Unit price
per
Free ground shipping on orders over $99 less than 20lbs
Couldn't load pickup availability
Payment methods
Guaranteed Secure Checkout
FREE SHIPPING ON ORDERS OVER $99,LESS THAN 20LBS
FREE RETURNS WITHIN 30 DAYS
TRUSTED BY OVER 100K CUSTOMERS
A8017DH
Designed especially for use as a high capacity liquid withdrawal valve on LP-Gas and anhydrous ammonia containers. These valves incorporate an integral excess flow valve. When product is required, the valve must be completely open and backseated to allow the excess flow valve to function properly as explained in the excess flow valve section of this catalog. The A8017DH is equipped with a soft seated automatic differential back pressure check valve in the seat disc assembly. This allows any pressure build up in the liquid transfer line in excess of 10-15 psig above the container pressure to flow back into the container. The transfer hose is protected against excessive liquid or vapor pressure entrapment, which adds materially to the useful life of flexible hose. In addition to increasing hose service life, the equalizing valve adds substantially to the operating safety of liquid transfer systems.
Specifications
Inlet Connection (in.)1 1/4” M. NPT
Outlet Connection (in.)1” F. NPT
Accessories Hydrostatic Relief ValveNot Required
Accessories Vent ValveTSS3169
approximate_excess_flow_liquid_closing_flow_gpm_propane49 GPM
BrandRegO
Connection Type: M. NPT x F. NPT
Materials: Body, Ductile Iron |Bonnet, Steel |Stem, Stainless Steel |Seat Disc, Resilient Synthetic Rubber |“V”-Rings, Teflon |Excess Flow Valve, Stainless Steel - Steel Body |Springs, Stainless Steel
Features & Benefits
- Positive-acting excess flow valve opens for maximum flow at minimum pressure drop when filling — regardless of the type of coupling in which the valve is installed.
- Excess flow seat is fully contained in the tank coupling for maximum protection in the event of external damage to the valve.
- Resilient seat disc assembly is fully contained on three sides for bubble-tight shut-off and long service life.
- “V”-ring spring loaded stem seal design requires no repacking or field adjustment.
- A8017DH has two plugged 1/4” NPT ports, one on the top and the other on the side, accommodate either a vent valve or hydrostatic relief valve.
- A8020D has a plugged 1/4” NPT port that accommodates vent valve, hydrostatic relief valve, or pressure gauge.
- A8017DH incorporates an automatic back check valve built into the shut-off valve, eliminating the need for a separate hydrostatic relief valve.
- Temperature range of -40°F to +165°F. (-40°C to +73°C)
- MAWP: 400 PSIG(27 Bar)
