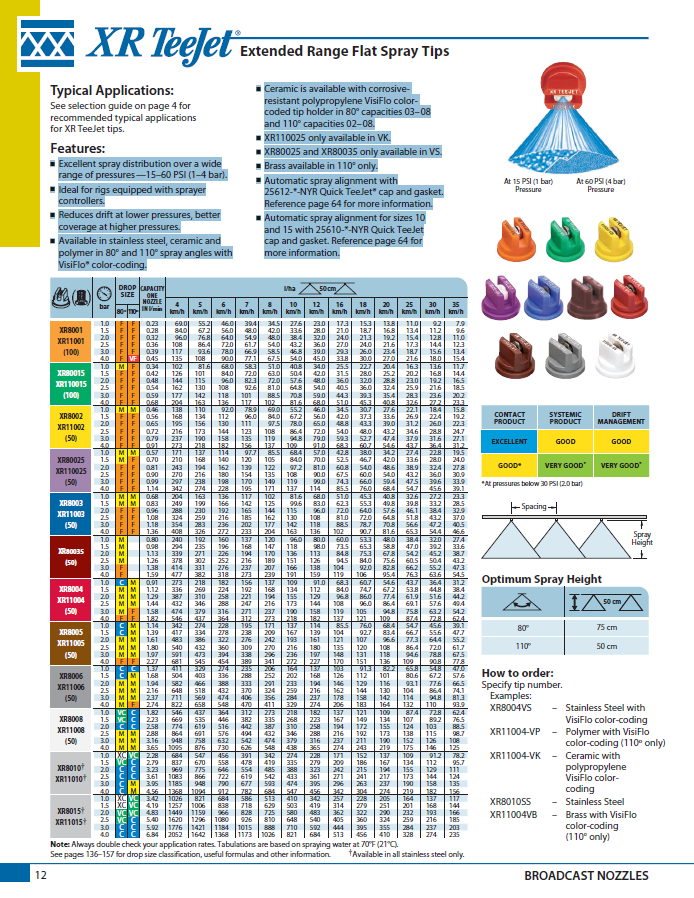

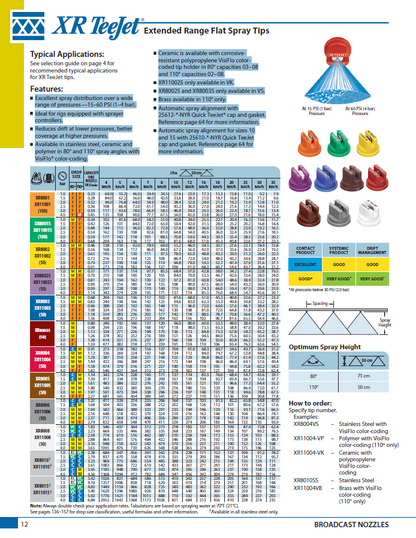

Features:

Excellent spray distribution over a wide
range of pressures—15–60 PSI (1–4 bar).
Ideal for rigs equipped with sprayer
controllers.
Reduces drift at lower pressures, better
coverage at higher pressures.
Available in stainless steel, ceramic and
polymer in 80° and 110° spray angles with
VisiFlo® color-coding.
Ceramic is available with corrosiveresistant
polypropylene VisiFlo colorcoded
tip holder in 80° capacities 03–08
and 110° capacities 02–08.
XR110025 only available in VK.
XR80025 and XR80035 only available in VS.
Brass available in 110° only.
Automatic spray alignment with
25612-*-NYR Quick TeeJet® cap and gasket.
Reference page 64 for more information.
Automatic spray alignment for sizes 10
and 15 with 25610-*-NYR Quick TeeJet
cap and gasket. Reference page 64 for
more information.
