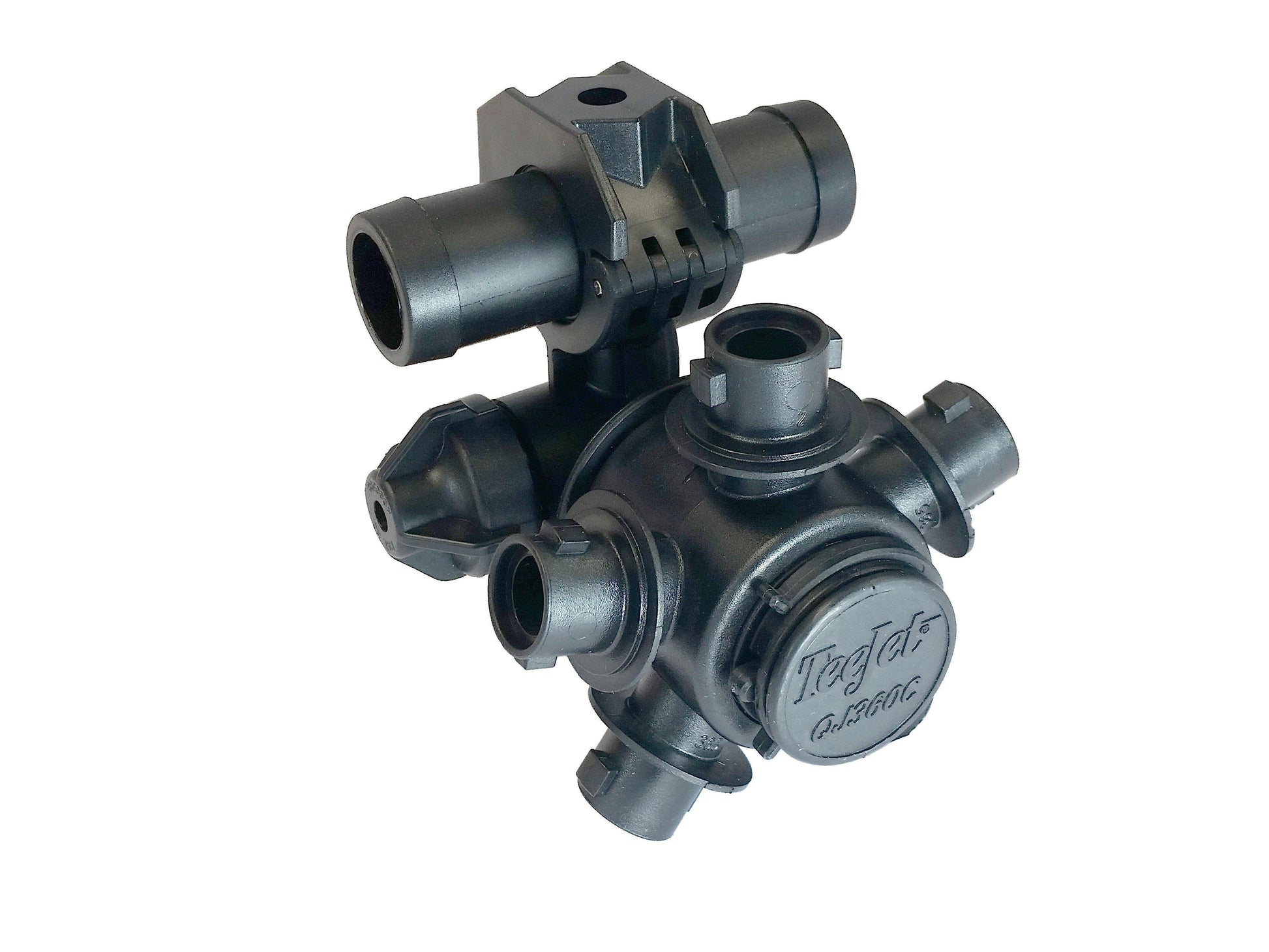

TeeJet - QJ365C-750-2-NYB - 5-Way Nozzle Body - Dry Boom - Double 3/4" Hose

QJ360C Series Dry Boom Nozzle Body

Features - Specs

Number of Spray Outlets: 5

Fits Hose Size: 3/4" I.D.

Feed: Double (In/Out)

Diaphragm Material: EPDM (Viton Optional)

Diaphragm Check Spring Capacity: 10 PSI (Other Spring Capacities Available)

• Positive shutoff between each position

• Automatic spray alignment using flat fan spray tips

• Maximum operating pressure of 300 PSI

• Includes ChemSaver® diaphragm check valve for drip-free shutoff. Standard diaphragm opens at 10 PSI (0.7 bar) - Other Spring Capacities available

• Standard EPDM diaphragm - Viton® diaphragm also available

• Also available with optional Air ChemSaver or e-ChemSaver® shutoff valves

• Flow Rate: 2.25 GPM (8.5 l/min) at 5 PSI (0.34 bar) pressure drop, 3.18 GPM (12.0 l/min) with 10 PSI (0.69 bar) pressure drop

• Durable design mounts body high on boom structure for maximum protection

• Molded hex socket in upper clamp for attaching to flat surfaces. Accepts 5/16" or M8 bolt

• Hinged upper clamp reduces assembly time and fits inside common boom channels
