CDS-John Blue Standard Liquid Blockage Monitor System - BM-08AP - 8 Row Applicator Kit
JBLBM08AP
CDS-John Blue Standard Liquid Blockage Monitor System - BM-08AP - 8 Row Applicator Kit
You can easily know your liquid application flow from the cab of your tractor with this LBMS from CDS-John Blue. Identify which row is being under-applied before your yields are diminished costing valuable time and money. This patented system shows you both low-flow and no-flow problems in real-time, which means you can correct it immediately without costly errors. No more second guessing if any of your delivery lines are plugged!
Features

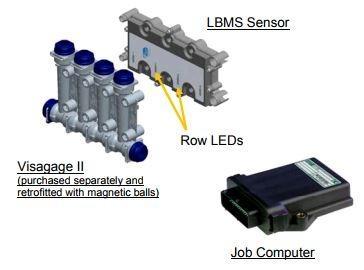

- The BM-08AP has magnetic sensing technology mounted behind liquid or NH3 VisaGage II Flow Monitors
- Can be mounted to existing units, new magnetic balls are supplied
- BM-08AP identifies where magnetic balls are floating in each row during application
- Shows low flow and no flow easily

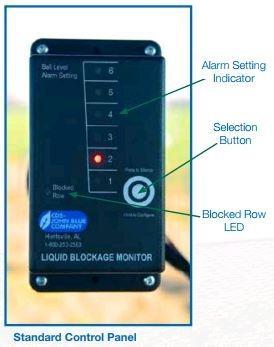

- Visual display shows alarm and audible alarms from inside your tractor
- Can be used with many different types of liquids, led light shows visible to the sides of the columns
- Each row with a problem, will be highlighted by a flashing LED light at the row, eliminating time consuming searches
- Alarm resets automatically, when blockage is cleared
- BM-08AP can pause to capture problem rows for investigation later when you are able to stop
- Available option: Standard wire controller
Kit includes
- Control panel with mount bracket
- Input harness
- 28 ft. extension harness
- Tee harness
- Two standard sensor kits
- 2 terminator plugs
