Raven 063-0171-666 - RFM 60S Stainless NH3 Flow Meter



  • $1,051.96
  • Save $250.47
Shipping calculated at checkout.

**This part is obsolete - Raven no longer makes it. It has been switched to a new part number. Click here to see it = Raven 063-0173-867  **

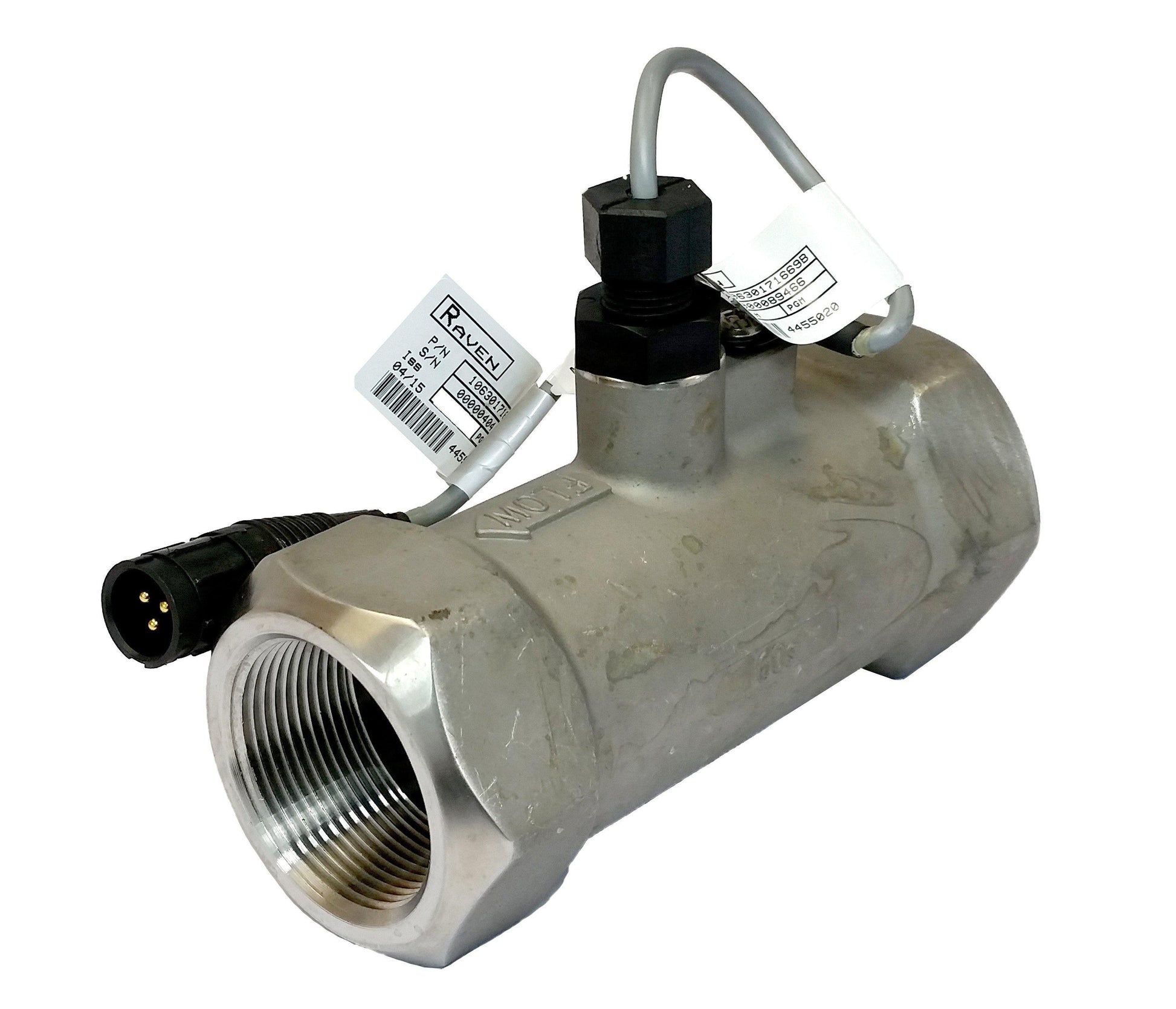

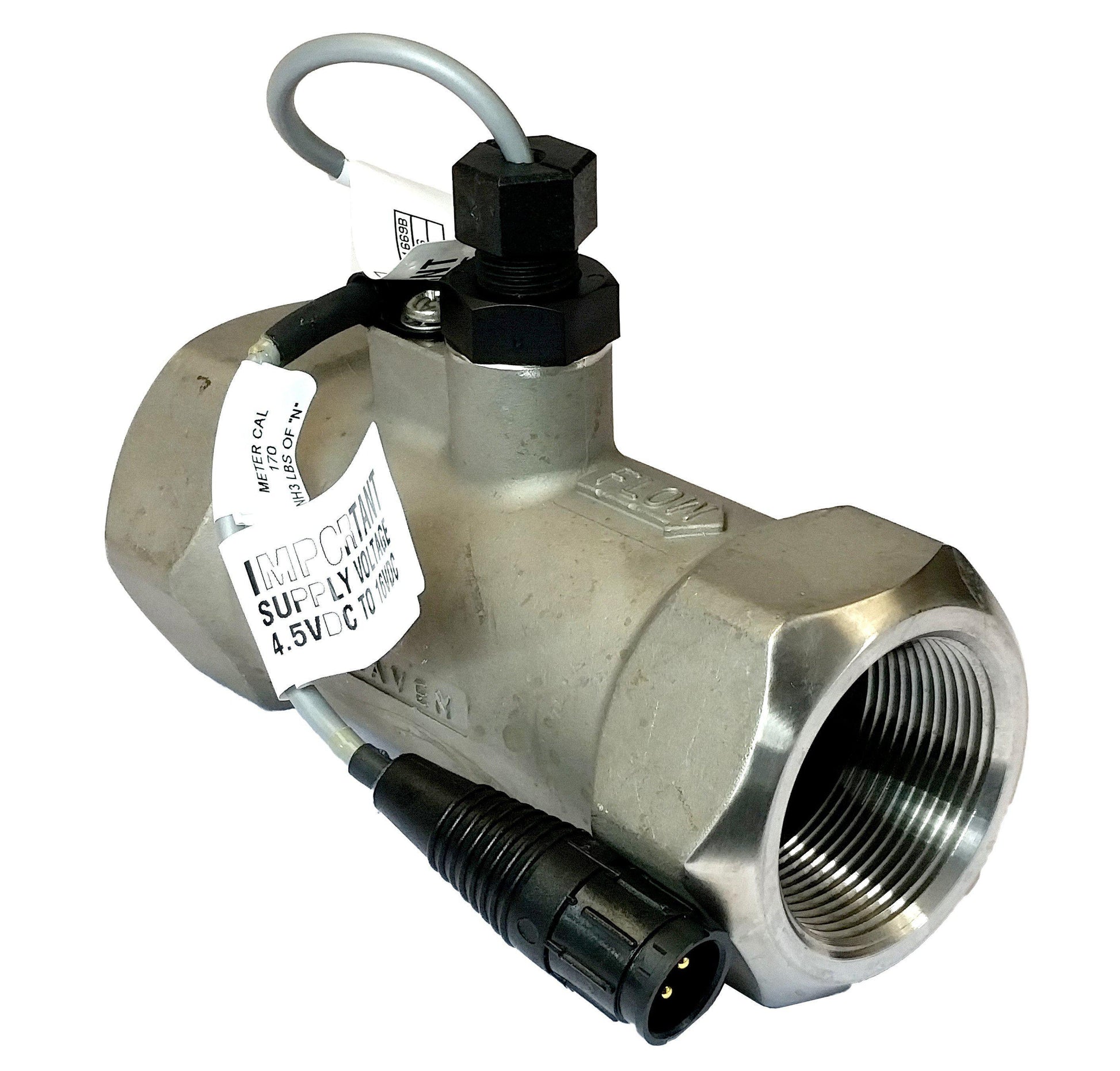

Raven 063-0171-666 - RFM 60S Stainless NH3 Flow Meter

Raven RFM Series of electronic turbine flow meters measure a wide range of liquids at various flow rates. These flow meters are economical, accurate, and very reliable. Raven RFM Flow Meters are compatible with most chemicals & liquids. A turn down ratio of 50:1 makes the RFM flow meters an excellent choice for agricultural applications

The Stainless Steel Body of the RFM 60S makes it an ideal choice for Anhydrous Ammonia

Raven 063-0171-666 - RFM 60S Stainless Flow Meter Features - Specs

Inlet/Outlet: 1-1/2" FNPT

Pressure Rating: 500 PSI

Typ. Pulses/Gal: 156

Rated Capacity: 1-60 GPM

Body" Stainless

Measuring Mechanism: Turbine

Application: NH3 - Anhydrous Ammonia
