Squibb Taylor - FM150-1001 - Flo-Max 1-1/2" Tool Bar Breakaway Coupler With Bracket-Mid-South Ag. Equipment

Squibb Taylor - FM150-1001 - Flo-Max 1-1/2" Tool Bar Breakaway Coupler With Bracket

SQ113202

SQUIBB TAYLOR

  • $1,524.99
Shipping calculated at checkout.

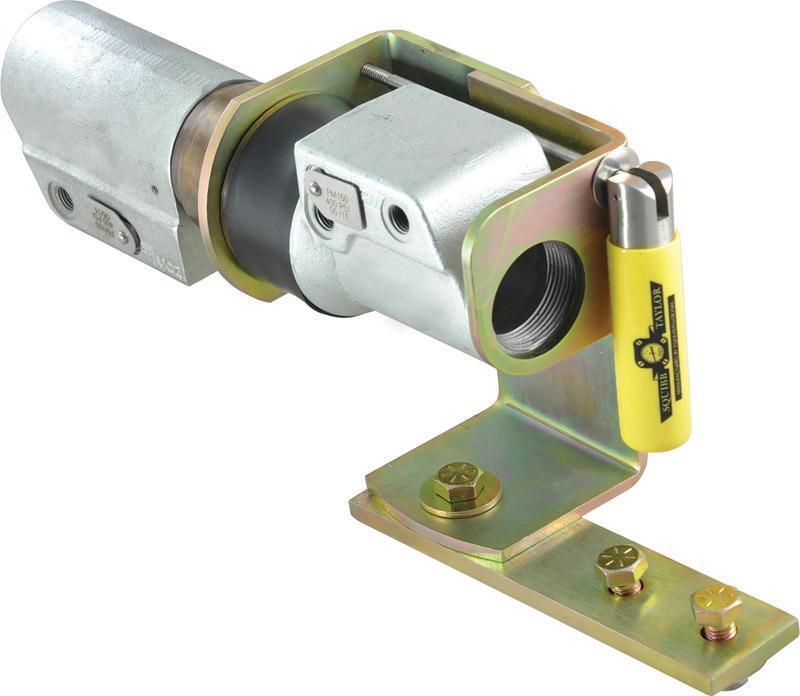

Squibb Taylor - FM150-1001 - Flo-Max 1-1/2" Tool Bar Breakaway Coupler With Bracket

The Flo-Max break away couplers are designed to safely disconnect the nurse tank hose from any tool bar in the event of a pull-away from the nurse tank or tank rollover. When the coupler disconnects, two check valves immediately close. The inlet check valve, located on the male half of the coupling, remains with the nurse tank hose & protects the nurse tank from releasing Anhydrous Ammonia from plumbing on the tool bar side. A minimal release (between 100 - 150cc) occurs at seperation due to the trapped liquid between the two check valves. The Flo-Max features stainless steel construction of critical internal parts, preventing corrosion & ensuring reliable operation in the event of a break-away. New E-Z Bracket makes reconnection simple & easy.

Features

Inlet/Outlet Size: 1-1/2" Female Pipe Thread

Bracket: E-Z Bracket Style - Included

Swing Style Check Valves minimize restriction - Allowing Maximum Flow

Stainless Steel Internal Parts - eliminate corrosion

New E-Z Bracket allows reconnection with minimal effort

1/4" FPT Ports for Bleeder/Hydrostaic Releif Valves (Bleed Valve/Hydrostatic Releif valve must be purchased seprately)

Excellent choice for cold weather application
